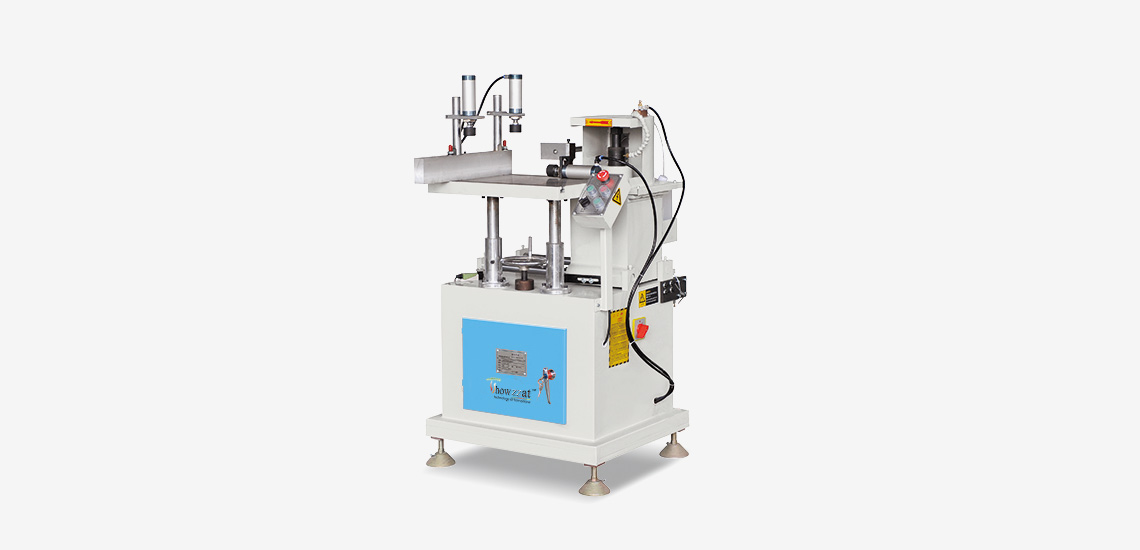

End Milling Machine
Features
- Used for processing Aluminum profile end, step face and end slot etc.
- Super precision Main shaft insures accurate and steady processing.
- Adjustable processing angle within 35-90 degree.
- Convenient tool setting is due to adjustable worktable.
- Tool feeding adopted linear bearing motion pair, which ensured steady processing.
Technical Parameter
| Input Voltage | 380V/50Hz |
| Input Power | 2.2KW |
| Air Pressure | 0.5～0.8MPa |
| Diameter of Main shaft | 32mm diameter |
| Milling Cutter Diameter | Φ110mm-Φ200 mm |
| Motor Rotary Speed | 12000/910r/min |
| Cutter adjustment | 0-80mm |
| Overall Dimension | 780×880×1350mm |
Main Accessory:
- Motor - Sanyang
- Milling Cutter - Weike
- Cyliner - Baide
- FRL - STNC
- Air Tube - Ashun, Taiwan
- Spindle - Mute optimization
