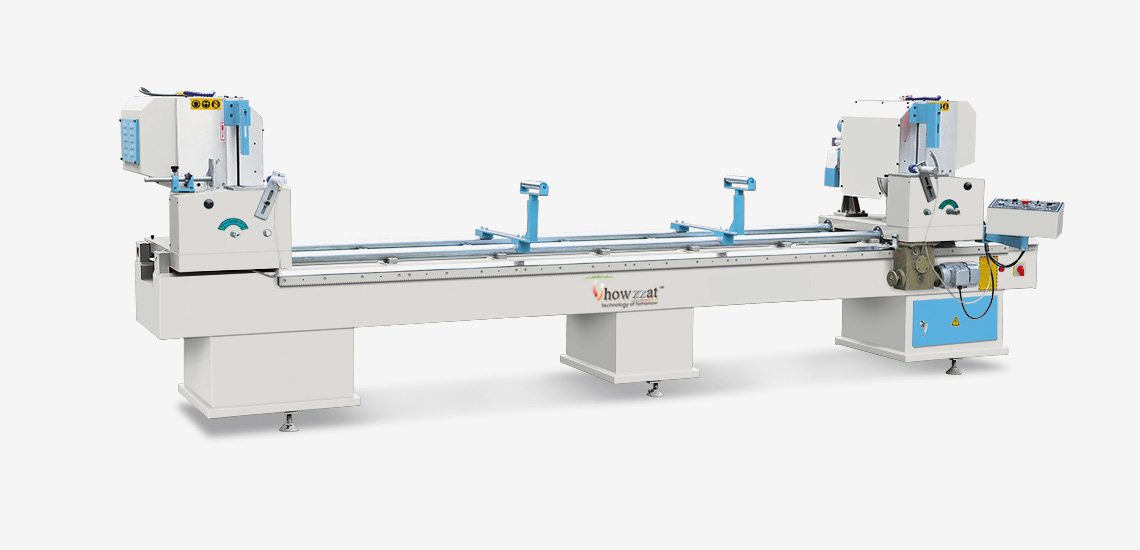

Double Head Cutting Machine HT450 X 3700 Automatic
Features
- The machine is used for processing the upvc profiles and Aluminum at angle of 45°～90° .
- The Linear Guiding pair ensures steady processing accuracy
- Saw blade rotates Smoothly due to high accuracy Main spindle
- Uniform speed feeding and smooth motion are due to airdraulic damping Cylinder.
- It has features of high operation, Reliable performance, advanced technique and convenient maintenance, etc.
Technical Parameter
| Input Voltage | 380V/50Hz |
| Input Power | 3.55 KW |
| Air Pressure | 0.5-0.8MPa |
| Saw blade specification | 450x 30dia |
| Motor Rotary Speed | 2800r/min |
| Cutting Length | 680-3700mm |
| Cutting Width × Height | 120 × 160mm |
| Overall dimension | 4600×1300×1550mm |
Main Accessory:
- Motor - Zhenyang
- Saw blade - Weike
- Cyliner - Baide
- Ac Condenser - Scheduler
- Air Filter - STNC
- Solenoid Valve - STNC
