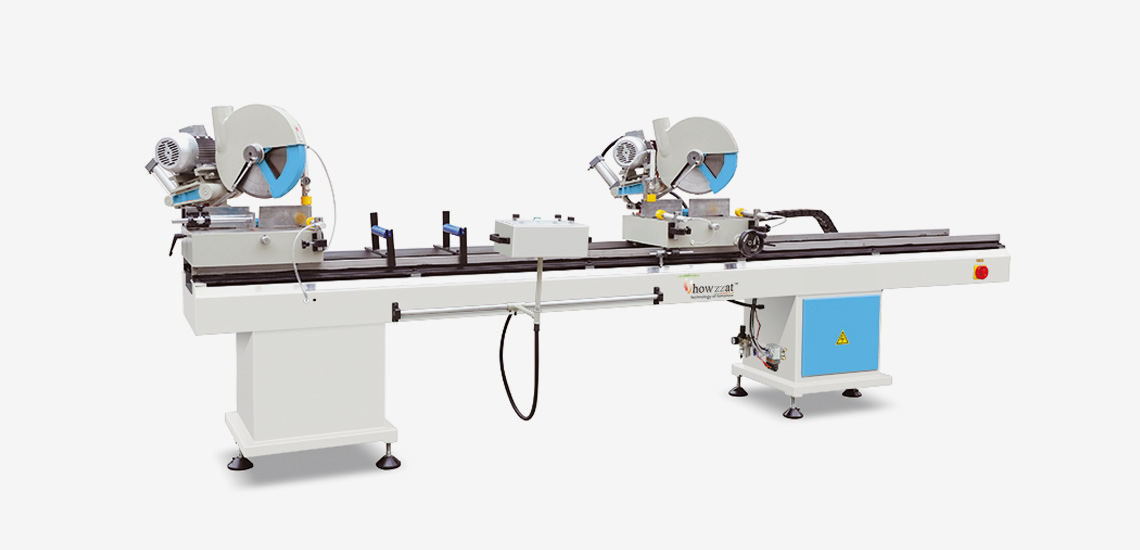

Double HEAD CUTTING MACHINE HT350 X 3500
Features
- The machine applies to 45°～90° cutting for Aluminum and PVC profiles.
- It adopts wabble feeding and round guideway loacating.
- It has features of high accuracy, efficiency and easy operation
Technical Parameter
| Input Voltage | 380V/50Hz |
| Input Power | 2×1.1 KW |
| Air Pressure | 0.4-0.6MPa |
| Air Consumption | 30L/min |
| Motor Rotary Speed | 3200r/min |
| Cutting Length | 290-3500mm |
| Cutting Width × Height | 200 X 100mm |
| Overall dimension | 4000×1120×1450mm |
Main Accessory:
- Motor - Zhenyang
- Saw blade - Weike
- Cyliner - Baide
- Ac Condenser - Scheduler
- Air Filter - STNC
- Solenoid Valve - STNC
