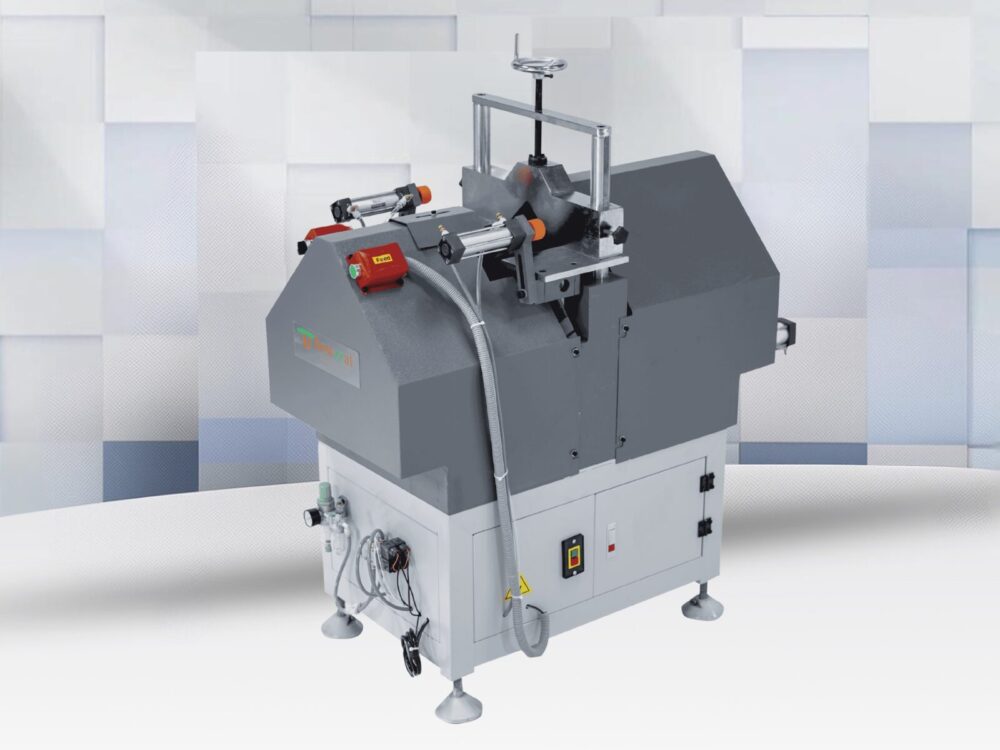

V Cutting Saw HTVC 60
Features
- For 90°V shaped Groove cutting.
- Pneumatic driving, easy operation.
- Smoothly feeding and high cutting precision.
Product Description
| Specification | Value |
|---|---|
| Input Voltage | 380V/50Hz |
| Input Power | 1.50KW |
| Air Pressure | 0.5～0.8MPa |
| Air Consumption | 30L/min |
| Motor Rotary speed | 2800r/min |
| Cutting Length | 300-1600mm |
| Cutting Width × Height | 120×20-65mm |
| Overall dimension | 1800*1380*1300mm |
Main Accessory
Motor – Sanyang, Anhui
Saw blade – Weike
Cylinder & Valves – Easun
Solenoid Valve – STNC
Air tube – Ashun, taiwan
Sliding seat – With dustproof device
