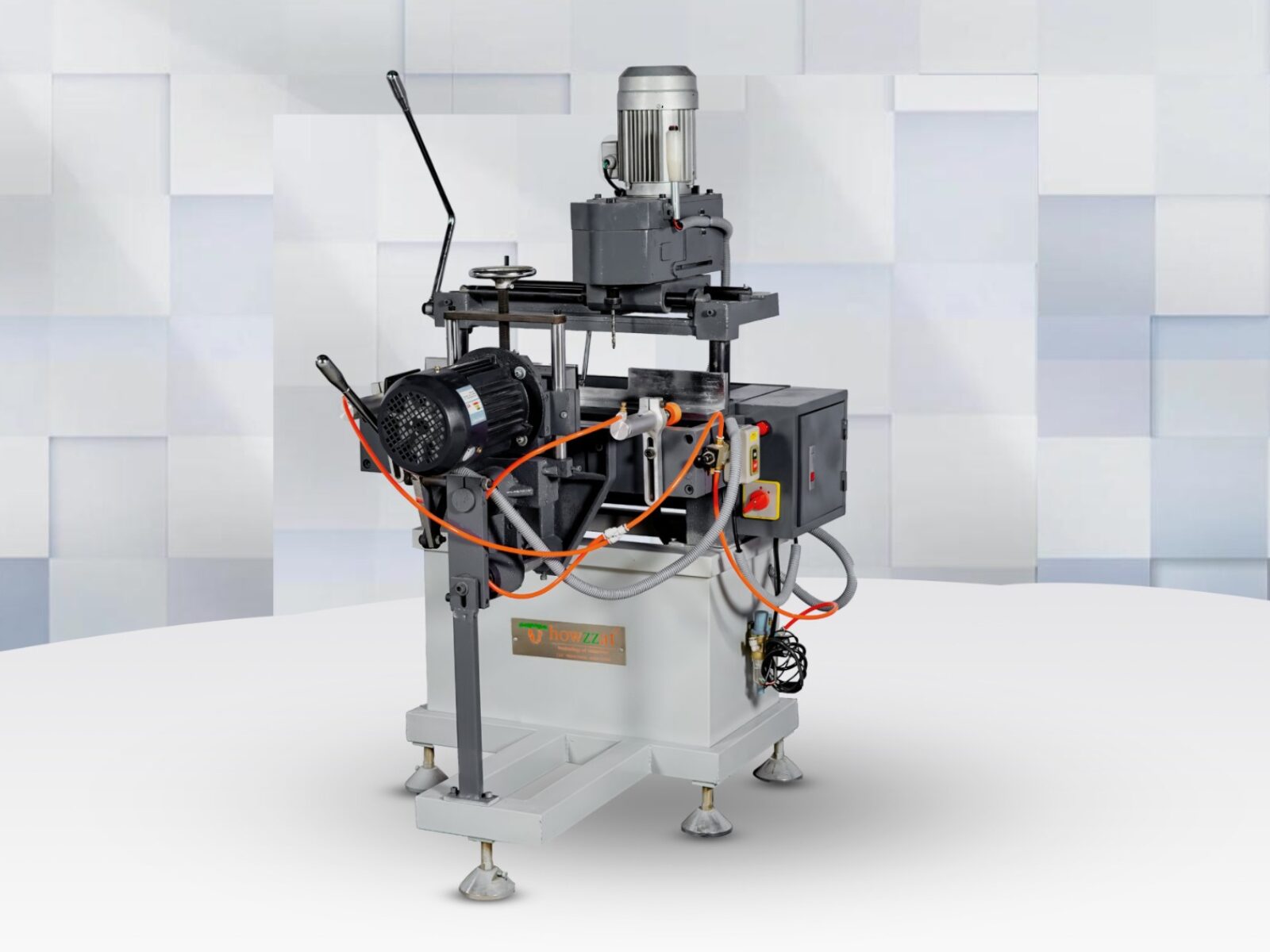

Lock Hole Milling Machine HTLH
Features
- Used for copy routing processing various kinds of holes, grooves and water-slots.
- Profile modelling by profiling mound plate and auxiliary positioning for modelling.
- Three drill up and down through the hand- Wheel adjustment, No need to adjust the frame, easy operation.
Product Description
| Specification | Value |
|---|---|
| Input Voltage | 380V/50Hz |
| Input Power | 1.5+0.75KW |
| Air Pressure | 0.4～0.6MPa |
| Air Consumption | 20L/min |
| Milling Cutter Diameter | Φ5mm-Φ8 mm |
| Motor Rotary Speed | 12000/910r/min |
| Copy Routing Range | 300mm×100mm |
| Overall Dimension | 1000×1500×1600mm |
Main Accessory
Motor – Sanyang
Milling Cutter – Weike
Cyliner – Baide
FRL – STNC
Air Tube – Ashun, Taiwan
Spindle – Mute optimization
