Howzzat – Best Upvc Window Door Making Machines

/
/
/

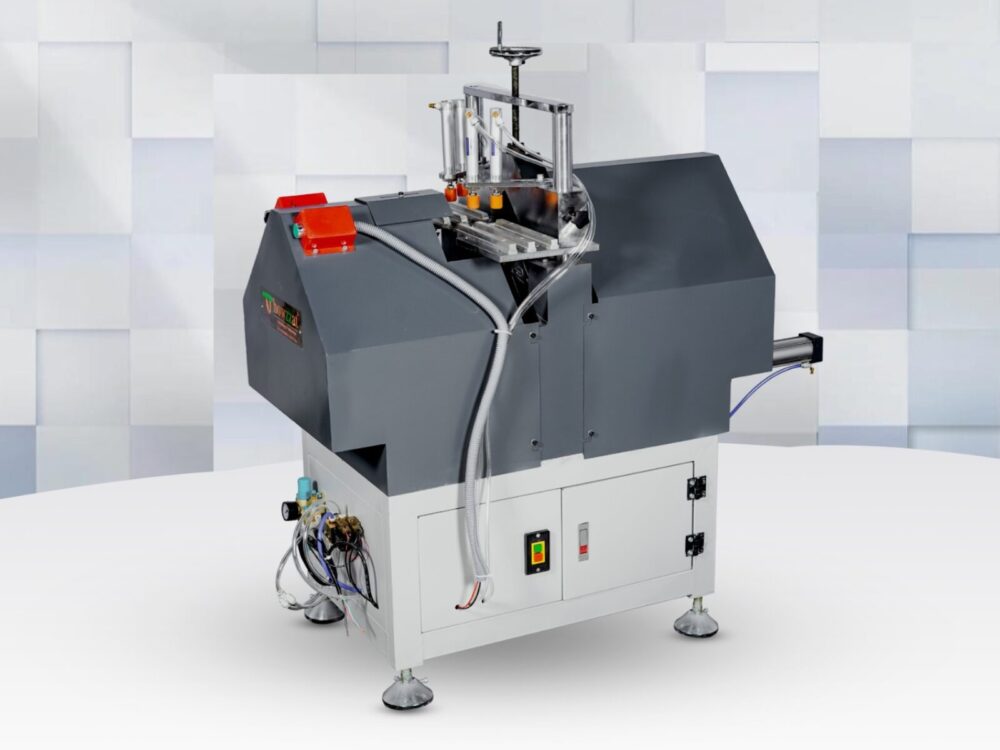

Glazing Bead Cutting
Glazing Bead Cutting

Features

  • Used for cutting 45° in both sides of the bead profile.
  • Equipped with universal modelling that suits for all brand upvc profiles.
  • Easy operating model that cuts top and bottom of profile with twin blade technology.
  • Both electric and pneumatic system works simultaneously makes work very ease.
  • Profile block, measuring scale, support stand, pad are very professional to work with it.

Product Description

SpecificationValue
Input Voltage380V/50Hz
Input Power1.50KW
Air Pressure0.5-0.8MPa
Air Consumption2L/min
Motor Rotary Speed2800r/min
Cutting Width100mm
Cutting height29mm
Cutting Length320-1800mm
Overall dimension2560*1260*1350mm

Main Accessory

Motor – Sanyang, Anhui
Saw blade – Weike
Cyliner & Valves – Easun
FRL – STNC
Air Tube – Ashun, Taiwan
Sliding Seat – With Dustproof Device
