Howzzat – Best Upvc Window Door Making Machines

/
/
/

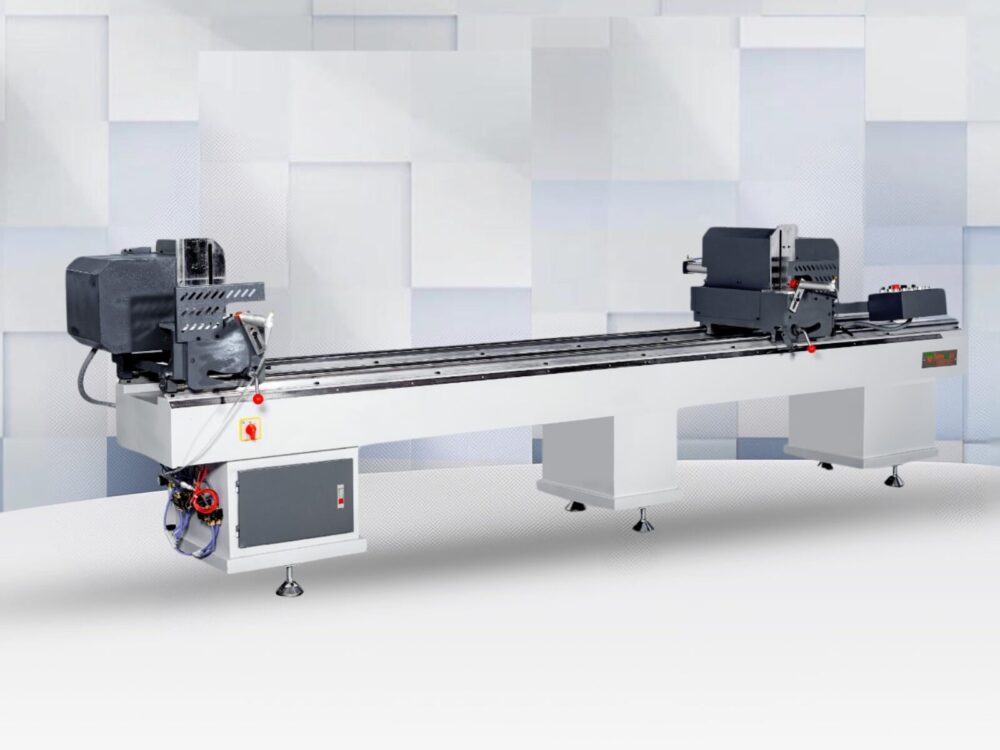

Double Head Cutting Machine HT400 X 3500
Double Head Cutting Machine HT400 X 3500

Features

  • The machine is used for cutting 45°90° in upvc profiles.
  • It can cut upto 112mm width which includes 3 track profile as well.
  • Tilting heads 45°/ 90° made very easy at finger tips with semi automatic operation.
  • Pneumatic driving system is used for clamping & feeding operation, while electrical system operating with dual 1.5KW motors are used for precision cutting of profiles.
  • Safety grills ensure safer working with peace of mind.
  • Perfect blade setting gives high accuracy and top class performance.

Product Description

SpecificationValue
Input Voltage380V/50Hz 3 Phase
Input Power2×1.5 KW Motor
Air Pressure0.4-0.6MPa
Air consumption100L/min
Motor Rotary Speed2800r/min
Cutting Length400-3500mm
Cutting Width × Height112 × 200mm
Overall dimension4200×1300×1460mm
Blade Size400 x 60 x 120T

Main Accessory

Motor – Zhenyang
Saw blade – Howzzat
Cylinder – Huatong Qidong
AC Condenser – Schneider
Air Filter – STNC
Solenoid Valve – STNC
